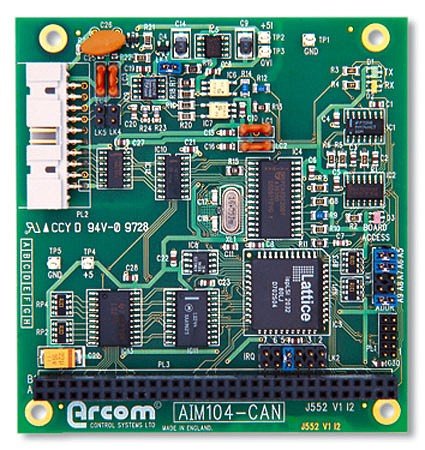

The AIM104-CAN is an 8-bit PC/104 module providing a single channel, optically isolated, Controller Area Network (CAN) interface. In addition, the board is fitted with an EEPROM for configuration information and an output port for driving three bi-colour LED’s.
Controller
It has a Philips® 82C200™ controller, and supports CAN ISO 11898 network connection (CAN 1.1 and 2.0a). It supports a 1Mbit/s Baud rate. CAN termination is onboard link-selectable.
Architecture:
Flash:
- 128 byte serial EEPROM for parameter storage
Controller Area Network Interface:
- Philips® 82C200™
- Single channel opto-isolated
- Supports CAN 11898 network connection (CAN1.1 and 2.0)
- Up to 1Mbit per sec baud rate
- Onboard link-selectable CAN termination network
LED:
- Module access LED
- Three bi-colour diagnostic LEDs, driven by output port
Interrupts:
Base Address Range:
I/O Address Space:
- 32 bytes, link-selectable base address
Bus Interface:
Power Supply:
- Single +5V DC
- +9 to +27V DC
Power Consumption:
- PC/104 interface: 180mA (typ) @ +5V, 0.9W typical
- Isolated CAN): 50mA (max) @ 9 to 27V, 1.35W max
Operating Temperature:
MTBF:
- 550,000+ hours (MIL-HDBK-217F @ ground benign)
- DeviceNet compatible breakout module
