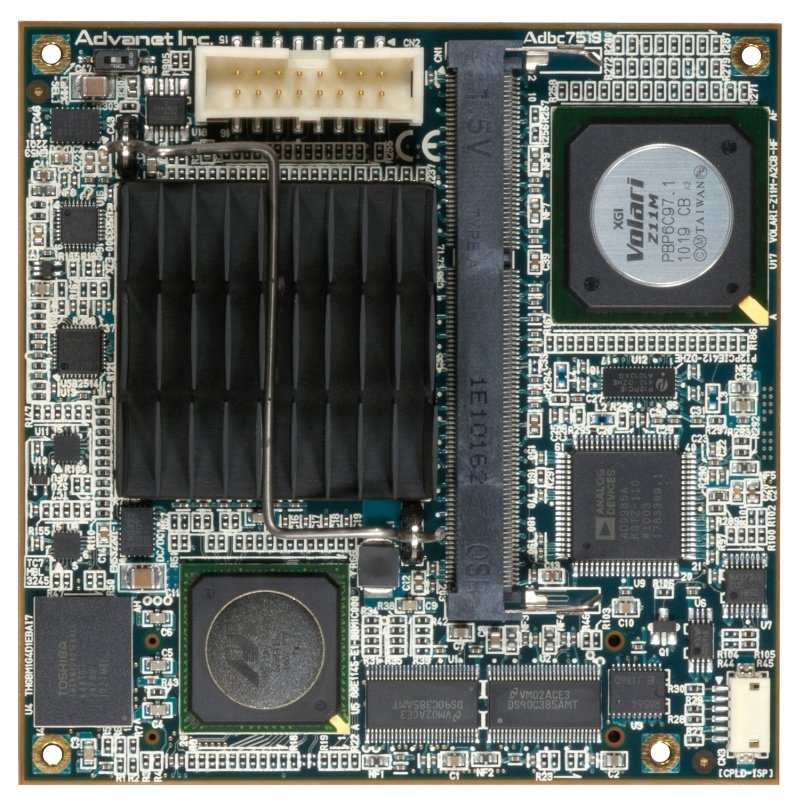

The Adbc7519 brings out a rich suite of I/O and multimedia capabilities by coupling the capabilities of the QorIQ processor with our engineering expertise and focus on small footprint and high-end performance.
Interfaces
Multimedia and I/O features include three Gigabit Ethernet ports, dual UARTS, and quad USB 2.0 ports. The Adbc7519 also allows for graphics and video plug-ins with VGA and LVDS features.
OEMs can choose from a Linux or VxWorks operating system, taking advantage of these development environments.
Eurotech offers a standard carrier board but also offers services for those customers who which to design their own.
PROCESSOR:
- Freescale P2020 with dual 1.2GHz cores
- L1 cache: 32kB for data and 32kB for instruction per core
- L2 cache: 512kB
OPERATING SYSTEM:
RAM MEMORY:
2GB of 72-bit DDR3-800 SO-DIMM with ECC
FLASH MEMORY:
2GB (bootable)
SERIAL EEPROM:
I2C 2KB
NETWORK:
3x 10/100/1000 BASE-T Ethernet interfaces
SPI:
QorIQ Enhanced Serial Peripheral Interface (eSPI)
SECURE DIGITAL:
QorIQ Enhanced Secure Digital Host Controller (SD/MMC) (bootable)
PCI EXPRESS:
- 1x PCI Express interface (x1 lane)
- 1x PCI Express interface (x2 lane)
- PCI Express Base Rev1.1
USB:
4x USB 2.0 ports
UARTS:
2X UART interfaces
I2C:
4x I2C interface expandable via I2C hub
GPIO:
INTERRUPT:
QorIQ Programmable interrupt controller (PIC)
IEEE1588
Connected to QorIQ processor:
- TMR_1588_CLK
- TMR_GCLK
- TMR_TRIG1,2
- TMR_PP1,2
- TMR_ALARM1,2
RTC:
Equivalent to RTC-8564JE (backed up by VCC_RTC power)
DISPLAY:
- 1x Analog VGA
- 2x LVDS (Data 4-pair, Clock 1-pair)
- Z11m (XGI)
JTAG COP:
Available as an option
PHYSICAL:
- Compact Module (95mm x 95mm)
- PICMG COM.0 R2.0 COM Express Module Base Specification
- RoHS compliant
POWER:
- Power supply: 12.0V±5%; SBY: 5V±5%; (supplied from COM Express connector)
- Consumption current: 12V: max 2.4A;SBY: max 0.1A
TEMPERATURE:
Operating: 0ºC to +50ºC
