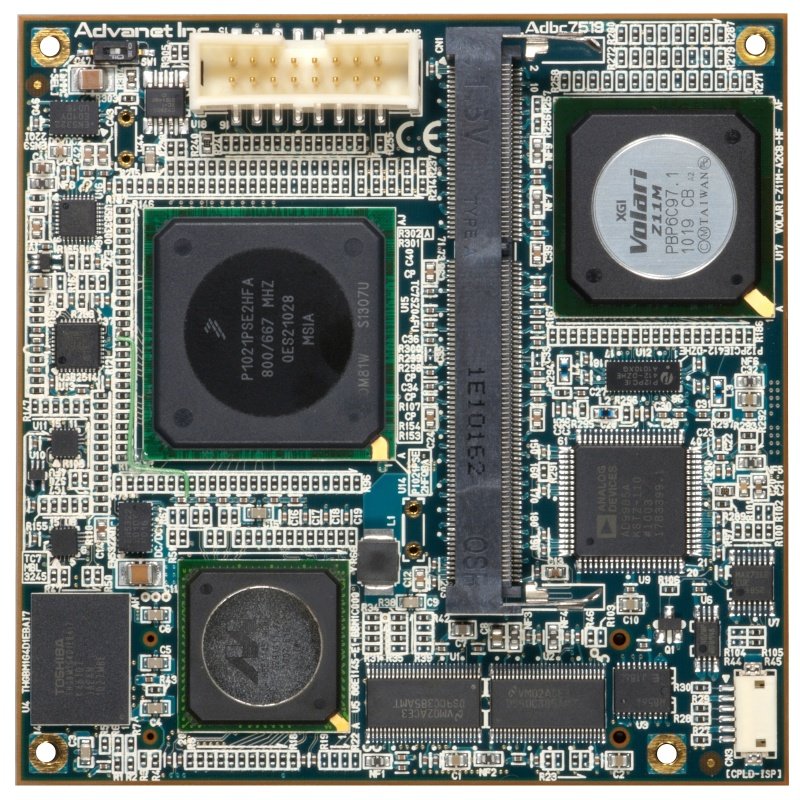

The Adbc7520 supports several I/O, communication, and video options.
Interfaces
Communications protocols are central to the benefits offered by this COM Express module. Enhanced features regarding the Gigabit Ethernet, eSDHC, and eLBC mean that Eurotech’s board provides fast and reliable data transfer between memory, I/O, and networking devices. ECC memory further ensures reliability and accuracy. Specifications such as these mean the Adbc7520 is truly a robust module. Furthermore, it is backed by Eurotech’s focus on quality manufacturing and production.
Operating Systems
OEMs can choose from a Linux or VxWorks operating system. Custom development environments can be supported if necessary.
PROCESSOR:
- Freescale P1021 with dual 800MHz cores
- L1 cache: 32kB for data and 32kB for instruction per core
- L2 cache: 256kB
- QUICC support
OPERATING SYSTEM:
RAM MEMORY:
512MB of 64-bit DDR3-667 SO-DIMM, ECC capable
FLASH MEMORY:
2GB (bootable)
SERIAL EEPROM:
I2C 2KB
NETWORK:
3x 10/100/1000 BASE-T Ethernet interfaces
SPI:
QorIQ Enhanced Serial Peripheral Interface (eSPI)
SECURE DIGITAL:
QorIQ Enhanced Secure Digital Host Controller (SD/MMC) (bootable)
PCI EXPRESS:
- 1x PCI Express interface (x1 lane)
- PCI Express Base Rev1.1
USB:
4x USB 2.0 ports
UARTS:
2X UART interfaces
I2C:
4x I2C interface expandable via I2C hub
QUICC:
32bit RISC Controller, Internal serial DMA
INTERRUPT:
QorIQ Programmable interrupt controller (PIC)
IEEE1588
Connected to QorIQ processor:
- TMR_1588_CLK
- TMR_GCLK
- TMR_TRIG1,2
- TMR_PP1,2
- TMR_ALARM1,2
RTC:
Equivalent to RTC-8564JE (backed up by VCC_RTC power)
DISPLAY:
- 1x Analog VGA
- 2x LVDS (Data 4-pair, Clock 1-pair)
- Z11m (XGI)
JTAG COP:
Available as an option
PHYSICAL:
- Compact Module (95mm x 95mm)
- PICMG COM.0 R2.0 COM Express Module Base Specification
- RoHS compliant
POWER:
- Power supply: 12.0V±5%; SBY: 5V±5% (supplied from COM Express connector)
- Consumption current: 12V: max 2.1A; SBY: max 0.1A
TEMPERATURE:
Operating: 0ºC to +50ºC
