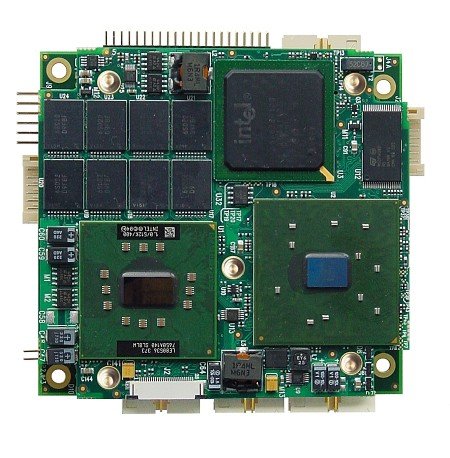

The CPU-1474 is an embedded board consisting of two modules: a mezzanine CPU module combined with a PC/104-Plus form factor carrier.
This rugged product features the Intel® Celeron M™ processor running at 1GHz, a Gigabit Ethernet interface and four USB 2.0 ports.
It is available both in standard and extended temperature range versions and supports fanless operation.
The CPU-1474 is an embedded rugged board based on two modules: a mezzanine CPU module combined with a PC/104-Plus form factor carrier.
CPU
The mezzanine CPU module features the Intel® Celeron M™ 1GHz (512KB L2 cache and 400MHz FSB) processor and the Intel® i855GME chipset.
Memory
The system comes with 512MB DDR, 266MHz (PC2100), soldered onboard.
BIOS
The 1MB Flash BIOS is fully re-programmable onboard. The set-up parameters are saved in the Flash memory for battery-free operation.
Interfaces
The carrier implements a very rich connectivity, including 4 USB 2.0 ports, 1 Gigabit Ethernet interface (1000/100/10Mbps), 1 Fast Ethernet interface (10/100Mbps), 2 Serial ports, Analog VGA and Flat Panel LVDS outputs, 1 AC97 interface, Keyboard and Mouse connectors and an IDE controller that supports IDE Flash device (Disk-On-Module, Compact Flash and Flash Disk).
The carrier also provides the connections for the ISA and PCI bus making it possible to stack the CPU-1474 on top of a PC/104-Plus system. Additionally, the carrier provides support for Watchdog management and Real Time Clock (with external backup battery) and can be customized to match specific customer needs.
Rugged
No active cooling is required to operate within the standard and extended temperature ranges. Conformal coating optionally available.
Architecture:
CPU:
- Intel® Celeron M™ 1 GHz, 512KB L2 cache, 400MHz FSB
Chipset:
RAM:
- 512MB DDR, 266MHz (PC2100), soldered onboard
BIOS:
- Phoenix Award BIOS
- 1MB Flash EPROM
- BIOS with enhanced embedded features, easy to upgrade and optionally customizable.
- Watchdog management.
- Set-Up in Flash for battery-free operation.
- Virtual Peripheral Support (V.P.S.): this mode allows users to bootstrap from the serial ports and redirect Keyboard, Video and Floppy Disk on the serial ports before booting the Operating System. It is also possible to redirect any of these peripherals by default.
- Etherboot support: this feature allows the system to boot up from a LAN connection for diskless operation.
IDE:
USB:
Network:
- 1x Intel® 82541 Gigabit Ethernet Controller
- 1x Intel® 82562 Fast Ethernet Controller
(TP RJ-45 Ethernet Adapter Sold Separately)
Serial Ports:
- 1x RS-232
- 1x RS-232/422/485
Video Controllers:
- Analog VGA output and Digital LVDS output
Audio:
- AC97 Audio CODEC port (Adapter sold separately)
Other Interfaces:
- Keyboard, Mouse
- Auxiliary Power
Watchdog Timer:
Bus:
- PC/104-Plus (PCI)
- PC/104 (ISA)
Power Supply:
Power Consumption:
Power Management:
- Temperature monitor with hardware thermal management circuit
- Power fail NMI (safe operation between 4.75V and 5.25V)
Mechanical:
- Dimensions: 90 x 96 mm (3.6" X 3.8")
- Height: 18.6 mm (0.7"), excluding ISA/PCI connectors
Operating temperature:
- 0 to +60 °C (standard)
- -40 to +85 °C (extended)
-
- No active cooling is required to operate within the standard and extended temperature range
Humidity:
MTBF:
- 199,000+ hours (MIL-HDBK-217 @ GB-25°C)
Supported Operating Systems:
- Windows CE 5.0®, Windows XP Embedded® and Linux®
Options:
- Custom BIOS with embedded features
- Extended operating temperature range
- Custom Carrier
- Conformal Coating
- Custom Connectors
- RJ45 10/100 Ethenet Adapter
- RJ45 Gigabit Ethernet Adapter
- AC97 Adapter
- USB Adapters
- 2mm to 2.54mm IDE Cable
- Cable Kit
- Development Kit
