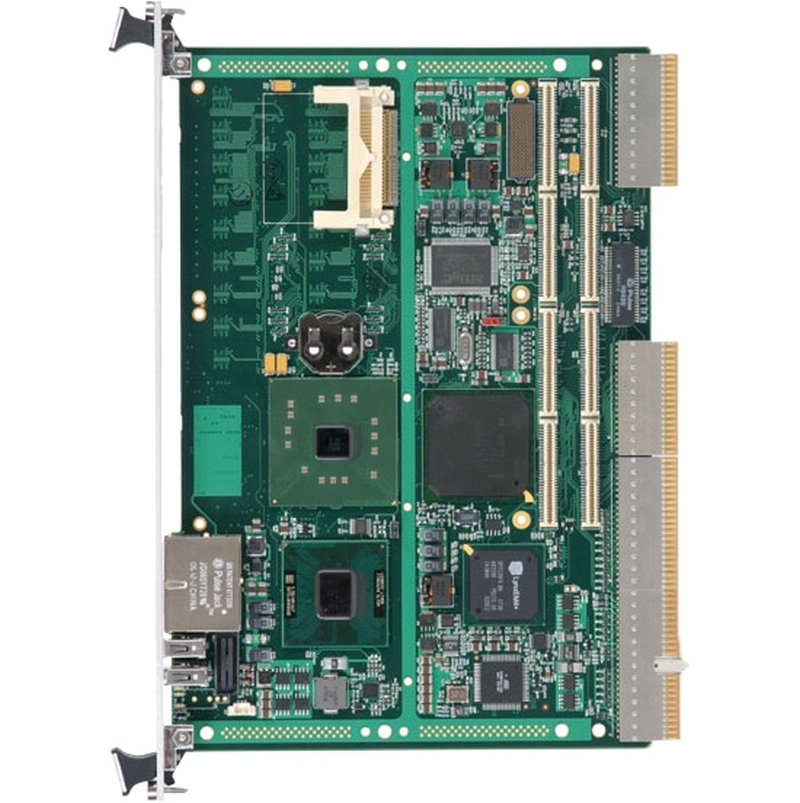

CPU-31-12 ^New_
6U CompactPCI Core2 Duo

Available in standard and rugged versions, the CPU-31-12 is a flexible platform that can be employed in industrial, transportation and defense applications. Suitable for harsh environments, it supports conduction cooling, wedge- locks and a full-board heat sink for high shock/vibration environments and temperature extremes.

The CPU-31-12 supports on-board bootable Compact Flash and delivers a rich set of periferals: it supports PCI-X and PCIe expansion, USB 2.0, ATA/100, and Serial ATA (SATA). Two Gb Ethernet ports and two USB 2.0 ports are accessible from the front panel, which also allows access to the two PMC sites.

The interfaces towards the backplane include two PICMG 2.16-compliant, 10/100/1000BaseTX ports, two SATA ports, VGA video,up to four COM ports, an optional IDE interface, PS/2 mouse & keyboard, and two more USB 2.0.

Two PMC-X site are provided for additional I/O expansion. One of the sites is XMC compatible and supports x8 PCI Express. Conventional PC I/O is accessible with industry-standard connectors on optional rear I/O modules.

Low Power – Dual core configurations, ideal for applications requiring low power or an exceptional performance to power ratio

ECC Memory – Protects data integrity

Feature Rich – With dual PMC/XMC expansion sites and a
number of on board peripherals, including video, USB and SATA

Rugged – Supporting extended temperature, wedge locks, conduction cooling and conformal coating
