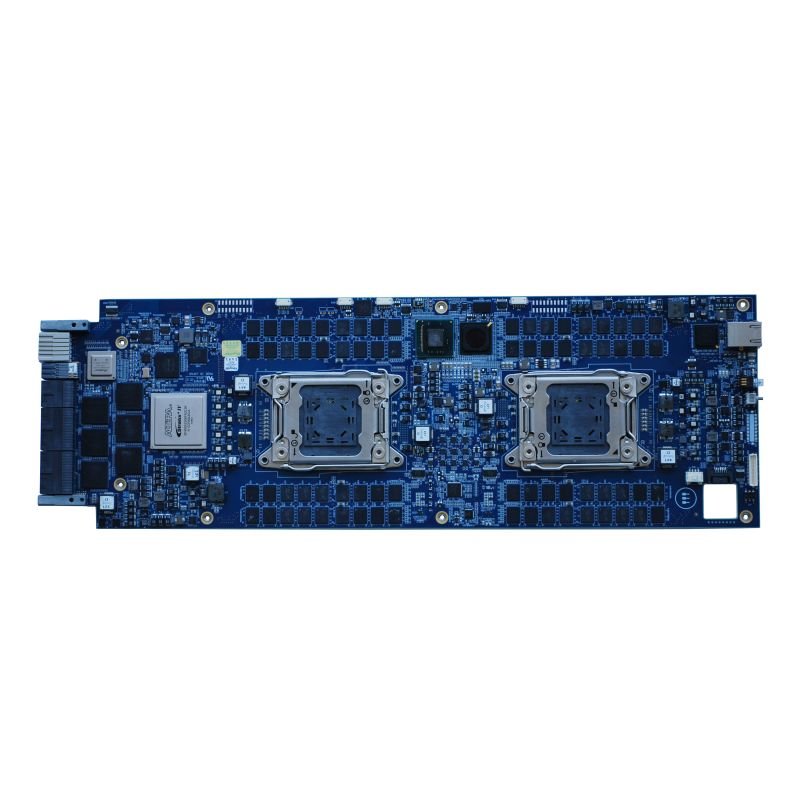

SUPERCOMPUTING CAPABILITIES - CPU-570-10 boards are used in the Eurotech HPC 10-10 supercomputers, the most dense and compact CPU based machines in the high performance computing
market.
GPU ACCELERATION CPU-570-10 is able to perform at 320 Gflop/s (288 GFlop/s sustained). It has very fast I/O with Infiniband or Gigabit Ethernet.
ENERGY EFFICIENT CPU-570-10 is top of the class in energy efficiency with 950 Mflop/s per Watt
RELIABLE No moving parts eliminate vibrations. Direct water cooling avoids hot spots while the soldered memory provides speed and robustness.
FPGA CPU-570-10 is provided with an Altera Stratix FPGA connected with 2 links PCIe3 x8 to the CPUs.
OPTIONALLY WATER COOLED Optionally cooled with direct hot liquid cooling that doesnt require air conditioning and ventilation. Pervasive cooling is applied to every component of the board to maximize the cooling effectiveness.
COMPUTING POWER
320 GFlop/s per board (peak) of pure CPU performance
PROCESSOR
2x Intel Xeon E5 Processors (Sandy Bridge),
6-8 Cores/12-16 Threads per Processor
20MB Intel Smart Cache
64-Bit Instruction Set
Up to 2.90 GHz Clockspeed (3.8 GHz w/ Intel Turbo Boost 2.0)
Support for Intel vPro, Hyper-Threading, Virtualization, Enhanced SpeedStep, Trusted Execution, Intel 64 Technologies
ARCHITECTURE
2 CPUs connected via 8.0GT/s QPI link
MEMORY
Up to 128 GB soldered RAM per node. ECC DDR3 SDRAM 1866 MT/s
FPGA (optional)
Stratix V SGXB6
CHIPSET
Intel I/O hub (Patsburg)
INTERFACES
1 x 40 Gbps QDR Infiniband
1 x 1Gbs Ethernet (Intel PXE)
2 x USB host (internal)
1 x standard VGA - Matrox MGA G200 with 8Mb RAM integrated in the BMC
Optional: 1+1 3D Torus or 3D mesh BW:up to 240+240Gbps, Latency: ~1us
SERIAL ATA
1 x 3 Gbps standard connector
BIOS
Insyde H2O
LOCAL STORAGE
up to 2 TB GB 2,5 Sata Disk or up to 512 TB 1,8 microSATA SSD
HW MONITORING AND CONTROL
IPMI - temperature, current (hall effect current sensor) and voltage
CAN BUS
OPERATING SYSTEMS
Linux, Windows 7, Windows Embedded
