SekuFACE is a privacy-compliant IP-based recognition system that detects human faces and processes them automatically, monitoring the transit of people through checkpoints and access passages in restricted areas and in many other applications where intelligent association of personal identity and permission rights is needed. Option for cross-controls with identification documents and badge devices can also be implemented.
SekuFACE creates a biometric map in just 3 seconds; it also stores individuals biometric tracks and pathways onto internal memory and remote database.
A built-in IR Illuminator makes SekuFACE suitable to operate under any light condition. Face images are captured live with no need for triggering and then compared with previously memorized ones of the same persons to allow or forbid the access.
Average identification rate achieves 95%, thus providing extreme reliability and making SekuFACE a perfect access control instrument to maximize security in targeted areas. By mapping the face image into a 86-measures biometric track, compliance with privacy regulation is wholly ensured.
An intuitive web GUI makes it easy to configure operating parameters, vision and communication features, FPM (False Positive Matching) and FNM (False Negative Matching) levels. Effortless management of white/black lists is also enabled, as well as statistical analysis of detections. Data are provided in CSV and highly optimized formats and securely stored in a remote FTP server.
SekuFACE software also permits for cross-checking between the biometric profiles and personal ID codes, thus supporting diversified access security levels. Several passages can be managed contemporarily and peoples pathways across hierarchic gates can be tracked. Biometric maps of individuals are finally deleted once exited from the restricted area. Only their pathway record is kept for a time span that is definable by the GUI in accordance with privacy constraints for the installation.
Unambiguous human face recognition
Biometric tracking vector compliant with privacy constraints
Night&Day operation
Anti-camouflage functionality for usage in Bank branches entry doors or by access turnstiles
Recognition functions according to ICAO standard (ISO/IEC 19794-5)
Cross-checking with biometric track in database
Option for cross-checking with biometric track stored on badge or other ID devices
White and black lists management
Web interface for configuration and management of product functionalities
Over-IP operation
IP52 protection

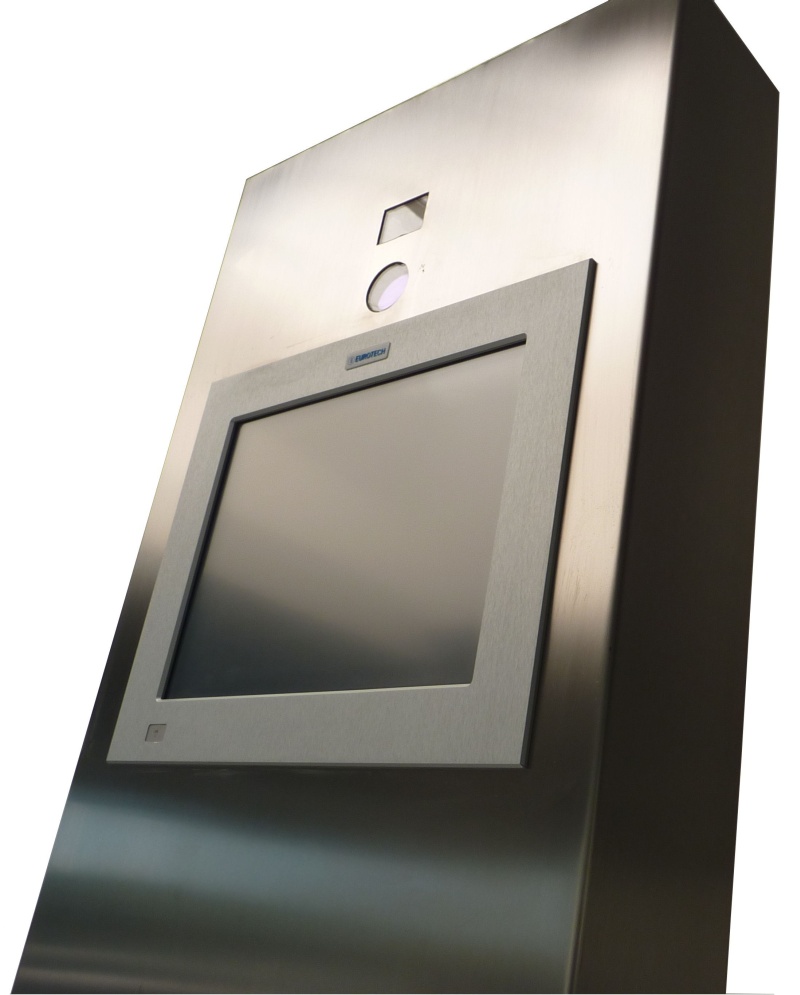

Available either as totem or as components version for integration within other access systems
Vision System
IMAGE CAPTURE
Resolution 1296 x 966 pixels (1.3Mpixel BW)
Progressive scan CCD BW
Lens type 8,5mm
Automatic Gain Control
Auto White Balance
Back light compensation
INTEGRATED IR ILLUMINATOR
Class 1M CEI EN 69825-1 ed. 4
Power 1,5W
Wavelength 850 nm
Angle 30°
RECOGNITION PROCESS
Capture rate 6 face images per second
Image analysis for ICAO standard compliance and biometric profile creation in 3sec.
Matching analysis with stored profiles in 3sec. every 1000 profiles in database
Interfaces
PORTS AND I/O
1x 10/100BASE-T Ethernet Port
15 LCD TFT Monitor
2x optoisolated input/output
POWER SUPPLY
+24VDC
POWER CONSUMPTION
74W Consumption
Storage Capacity
INTERNAL STORAGE
Up to 600.000 JPEG face images (300 GB Storage; 500 KB per face image with text file included)
Communications
TCP OPTIONS
Web GUI configuration panel for TCP parameters
DHCP client or manual configuration
RS232 OPTIONS
Configurable Transmission data format
Configurable RS232 parameters
DATA FORMAT
Data transmission CSV file for access records
JPEG face images associated with access records
Eurotech Cloud Computing platform compatiblePhysical Characteristics
Module dimensions: 180 x 50 x 15 mm (70.9x 19.7 x 5.9)
Weight 15 Kg
Temperature range: 0°C to +45°C (extended temperature option)
IP52 Mechanical Protection
